DANFOSS變頻器FC-051P1K5T4E20H3BXCXXXSXXX技術參數
Product details | |
Gross weight | 1.883 kg |
Net weight | 1.517 kg |
Volume | 4.558 l |
EAN | 5702427357563 |
VLT? MICRO DRIVE FC 051 SERIES | |
Product View (Switch) | [GLBL] Global (Standard) |
Product Group | [FC-] VLT? Micro Drive FC- |
Micro Drive Series | [51] 51 |
Power Rating | [P1K5] (P1K5) 1.5 KW / 2.0 HP |
Phase | [T] Three phase |
Mains Voltage | [4] 380 - 480 VAC |
Enclosure | [E20] (E20) IP20 / Chassis |
RFI Filter | [H3] (H3) RFI Class A1/B (C1) |
Brake - Safe Stop | [B] Brake chopper |
LCP | [X] No Loc. Cont. Panel |
Coating PCB | [C] Coated PCB |
Mains Option | [X] No Mains Option |
Adaptation A | [X] Standard Cable Entries |
Adaptation B | [X] No adaptation |
Software Release | [SXXX] Latest release std. SW. |
Frame Size | [M2] M2-FRAME |
Typecode Part 1 | FC-051P1K5T4E20H3BXCXXXSXXX |
Modelcode01 | FC-051P1K5T4E20H3BXCXXXSXXX |
Calculated Gross Weight [kg] | 1.9 |
Calculated Net Weight [kg] | 1.6 |
ECCN EU | Y901 |
ECCN US | 3A999.a |

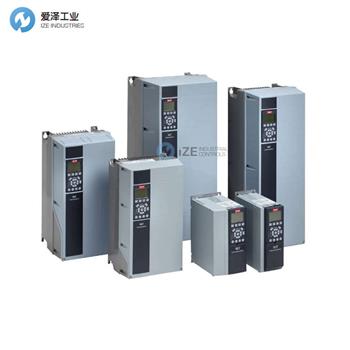

DANFOSS變頻器FC系列介紹
VLT? Micro Drive 是一款通用驅動器，可控制高達 22.0 kW 的交流電機。它是一款小型驅動器，具有很高的強度和可靠性。VLT? Micro Drive 的制造尊重環境，并符合 RoHS 指令。
The VLT? Micro Drive is a general-purpose drive that can control AC motors up to 22.0 kW. It is a small drive with maximum strength and reliability. The VLT? Micro Drive is manufactured with respect for the environment, and it complies with the RoHS Directive.
DANFOSS變頻器FC系列其他常用型號：
DANFOSS FC-051P11KT4E20H3BXCXXXSXXX
DANFOSS FC-051P15KT4E20H3BXCXXXSXXX
DANFOSS FC-051P18KT4E20H3BXCXXXSXXX
DANFOSS FC-051P1K5S2E20H3BXCXXXSXXX
DANFOSS FC-051P1K5T2E20H3BXCXXXSXXX
DANFOSS FC-051P1K5T4E20H3BXCXXXSXXX
DANFOSS FC-051P22KT4E20H3BXCXXXSXXX
DANFOSS FC-051P2K2S2E20H3BXCXXXSXXX
DANFOSS FC-051P2K2T2E20H3BXCXXXSXXX
DANFOSS FC-051P2K2T4E20H3BXCXXXSXXX
DANFOSS FC-051P3K0T4E20H3BXCXXXSXXX
DANFOSS FC-051P3K7T2E20H3BXCXXXSXXX
DANFOSS FC-051P4K0T4E20H3BXCXXXSXXX
DANFOSS FC-051P5K5T4E20H3BXCXXXSXXX
DANFOSS FC-051P7K5T4E20H3BXCXXXSXXX
DANFOSS FC-051PK18S2E20H3XXCXXXSXXX
DANFOSS FC-051PK25T2E20H3XXCXXXSXXX
DANFOSS FC-051PK37S2E20H3XXCXXXSXXX
DANFOSS FC-051PK37T2E20H3XXCXXXSXXX
DANFOSS FC-051PK37T4E20H3XXCXXXSXXX
DANFOSS FC-051PK75S2E20H3XXCXXXSXXX
DANFOSS FC-051PK75T2E20H3XXCXXXSXXX
DANFOSS FC-051PK75T4E20H3XXCXXXSXXX
DANFOSS FREQUENCY CONVERTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS變頻器FC-051P1K5T4E20H3BXCXXXSXXX的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
