DANFOSS變頻器FC-051P2K2T4E20H3BXCXXXSXXX技術參數
Product details | ||
Gross weight | 1.95 Kilogram | |
Net weight | 1.75 Kilogram | |
Volume | 4.603 Liter | |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT? Micro Drive FC- |
Micro Drive Series | 51 | 51 |
Power Rating | P2K2 | (P2K2) 2.2 KW / 3.0 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E20 | (E20) IP20 / Chassis |
RFI Filter | H3 | (H3) RFI Class A1/B (C1) |
Brake - Safe Stop | B | Brake chopper |
LCP | X | No Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Frame Size | M2 | M2-FRAME |
Typecode Part 1 | FC-051P2K2T4E20H3BXCXXXSXXX | |
Modelcode01 | FC-051P2K2T4E20H3BXCXXXSXXX | |
Product Catalog | NO_VIEW | NO VIEW |
Calculated Gross Weight [kg] | 1.9 | |
Calculated Package Weight | 0.3 | |
Calculated Net Weight [kg] | 1.6 | |
ECCN EU | Y901 | Y901 |
ECCN US | 3A999.a | 3A999.a |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Recommended Plant | ERR01 | ERR01 |
DrivePro category | EXCH | Exchange Unit |
DANFOSS變頻器FC-051P2K2T4E20H3BXCXXXSXXX介紹
頻率變換器

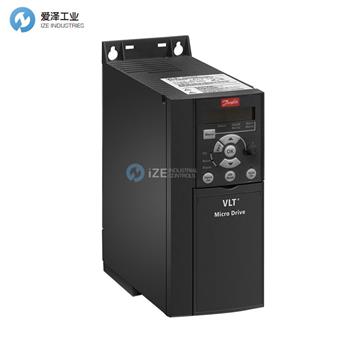

型號：FC-051P2K2T4E20H3BXCXXXSXXX
VLT? 微型變頻器 FC-51
（P2K2） 2.2 千瓦 / 3.0 馬力，三相
電壓范圍：380 - 480 VAC
防護等級：IP20 / 機箱（E20）
RFI等級：A1/B（C1）
具有制動剎車器
無本地控制面板
帶涂層PCB，無市電選項
架構：M2
其他選項可根據型號代碼定制
型號代碼：
FC-051P2K2T4E20H3BXCXXXSXXX
VLT? 微型變頻器是一款通用控制器，可控制最高22.0千瓦的交流電動機。它體積小巧但具有極高的強度和可靠性。VLT? 微型變頻器在制造過程中優先考慮環保，符合RoHS指令。
Frequency Converter
FC-051P2K2T4E20H3BXCXXXSXXX
NB: Last time buy June 30, 2026
VLT? Micro Drive FC-51
(P2K2) 2.2 KW / 3.0 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
(H3) RFI Class A1/B (C1)
Brake chopper
No Loc. Cont. Panel
Coated PCB, No Mains Option
M2-FRAME
Other options according to Model code
Model code:
FC-051P2K2T4E20H3BXCXXXSXXX
The VLT? Micro Drive is a general-purpose drive that can control ACmotors up to 22.0 kW. It is a small drive with maximum strength andreliability. The VLT? Micro Drive is manufactured with respect for theenvironment, and it complies with the RoHS Directive.
DANFOSS變頻器FC-051系列其他常用型號：
DANFOSS FC-051PK18S2E20H3XXCXXXSXXX
DANFOSS FC-051PK37S2E20H3XXCXXXSXXX
DANFOSS FC-051PK75S2E20H3XXCXXXSXXX
DANFOSS FC-051P1K5S2E20H3BXCXXXSXXX
DANFOSS FC-051P2K2S2E20H3BXCXXXSXXX
DANFOSS FC-051PK25T2E20H3XXCXXXSXXX
DANFOSS FC-051PK37T2E20H3XXCXXXSXXX
DANFOSS FC-051PK75T2E20H3XXCXXXSXXX
DANFOSS FC-051P1K5T2E20H3BXCXXXSXXX
DANFOSS FC-051P2K2T2E20H3BXCXXXSXXX
DANFOSS FC-051P3K7T2E20H3BXCXXXSXXX
DANFOSS FC-051PK37T4E20H3XXCXXXSXXX
DANFOSS FC-051PK75T4E20H3XXCXXXSXXX
DANFOSS FC-051P1K5T4E20H3BXCXXXSXXX
DANFOSS FC-051P2K2T4E20H3BXCXXXSXXX
DANFOSS FC-051P2K2T4E20H3BXCXXXSXXX
DANFOSS FREQUENCY CONVERTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS變頻器FC-051P2K2T4E20H3BXCXXXSXXX的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
