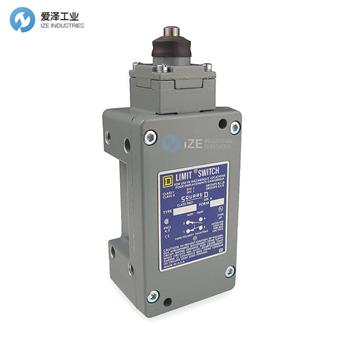

SQUARE-D限位開關9007CR61E技術參數
Range of product | 9007 |
Series name | Heavy duty |
Product or component type | Limit switch |
Product specific application | Hazardous location box |
Device short name | 9007CR |
Body type | Fixed |
Head type | Plunger head |
Material | Metal |
Fixing mode | By the body |
Movement of operating head | Linear |
Type of operator | Stainless steel spring return plunger (-) |
Switch actuation | On end |
Type of approach | Vertical approach, 1 direction |
Electrical connection | Screw-clamp terminals (AWG 22...AWG 12), 1…2 |
Cable entry | 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
Number of poles | 2 |
Contacts type and composition | 2(NC-NO) |
Contact operation | Snap action |
Positive opening | Without |
Level or class | Class II Division 1 Groups E/F/G |
SQUARE-D限位開關9007系列其他常用型號：
SQUARE-D 9007MS01S0500
SQUARE-D 9007TUB4M11
SQUARE-D 9007CR67T10
SQUARE-D 9007FTUB4
SQUARE-D 9007D FTUB12-M11
SQUARE-D 9007 FTUB4-M12
SQUARE-D 9007CR67T10
SQUARE-D 9007C54B2
SQUARE-D 9007C62B2
SQUARE-D 9007C54B2
SQUARE-D 9007C68T10Y203
SQUARE-D 9007CR61E
SQUARE-D LIMIT SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SQUARE-D限位開關9007CR61E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SQUARE-D products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
