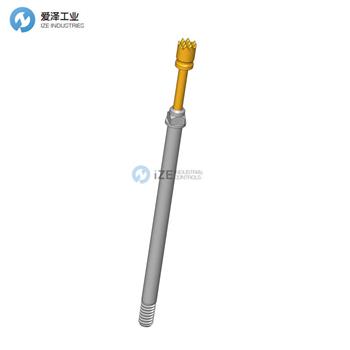

INGUN探針HSS-118 306 200 A 1502技術參數
Technical data | |
General data | |
Product group : | High-current test probe |
Sub-product group : | Standard HSS (press-in) |
Series : | HSS-118 |
Grid : | 2.54 mm |
Contacting from : | Pin, Post, Flat contact |
Magnetic : | Yes |
Installation type : | Plug-in |
Quick-exchange system : | Yes |
Adjustable installation height : | No |
Non-rotating : | No |
Compatible receptacle(s) : | KS-112 |
Min. temperature : | - 100 °C |
Max. temperature : | + 200 °C |
RoHS-compliant : | RoHS-3;6c |
Electrical data | |
Current load capacity / rated current : | 20 A |
Typical resistance (Ri) : | < 10 mOhm |
Mechanical data | |
Total length : | 32.3 mm |
Barrel diameter : | 1.66 mm |
Maximum stroke : | 5.3 mm |
Spring pre-load : | 0.45 N |
Collar height : | 02 |
Working stroke : | 4 mm |
Wireless receptacle data | |
Spring force at working stroke : | 1.5 N |
Tip style data | |
Tip style : | 06 serrated |
Tip diameter : | 2 mm |
Tip style surface : | A gold |
Tip style material : | 3 CuBe |
INGUN探針HSS-118 306 200 A 1502產品介紹
? 堅固耐用的大電流探頭，尺寸適合電流負載容量比
? 低電阻探頭，Ri 典型值：< 10 mOhm
? 用于功能和老化測試
? 多種尖端樣式和彈簧力可供選擇，可實現與 DUT 的更佳接觸
? 測試夾具中行程比的更佳調整：測試探針套環有不同的高度，與插座結合使用，可實現多種安裝高度
? Trusted, robust high-current probes, optimally sized for current load capacity ratio
? Low resistance probe with Ri typical: < 10 mOhm
? For use in function and burn-in tests
? Large selection of tip styles and spring forces for optimum contact with DUT
? Optimum adjustment of the stroke ratios in the test fixture: The test probe collar is available in different heights, which, in combination with the receptacles, allows a range of installation heights
