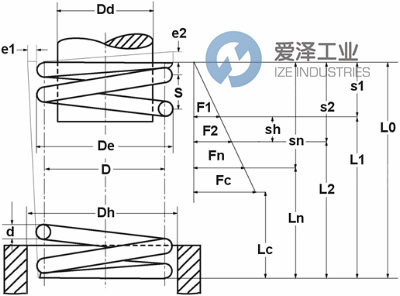

GUTEKUNST彈簧VD-080B-02技術參數
| ||
Material | EN 10270-3-1.4310 | Type of material |
Spring ends | Closed and ground | Spring ends |
d | 0.5mm | Wire diameter |
D | 3.5mm | Mean coil diameter |
De | 4mm | Outer coil diameter |
Dd | 2.7mm | maximum diameter of mandrel |
Dh | 4.4mm | minimum diameter of bush |
L0 | 15mm | unstressed spring length |
Fn | 13.524N | maximum force in static use |
Ln | 5.99mm | Minimum length in static use |
sn | 9.01mm | Maximum spring deflection in static use |
Fndyn | 11.555N | maximum force in dynamic use |
Lndyn | 7.3mm | Minimum length in dynamic use |
shdyn | 1.78mm | Maximum stroke in dynamic use |
S | 1.706mm | pitch of spring |
n | 8.5pc. | number of active coils |
R | 1.501N/mm | Spring rate |
Weight | 0.1792g | weight of one spring |
Fntol | 0.97N | (+/-) tolerance of maximum force in static use |
Fndtol | 0.97N | (+/-) tolerance of maximum dynamic force |
Detol | 0.15mm | (+/-) tolerances of outer coil diameter |
L0tol | 0.51mm | (+/-) tolerance of unstressed spring length |
Price group | F | price group |
GUTEKUNST彈簧其他常用型號：
GUTEKUNST VD-080
GUTEKUNST VD-080A
GUTEKUNST VD-080A-01
GUTEKUNST VD-080A-02
GUTEKUNST VD-080B
GUTEKUNST VD-080B-02
GUTEKUNST VD-080B-04
GUTEKUNST VD-080C
GUTEKUNST VD-080D
GUTEKUNST VD-080E

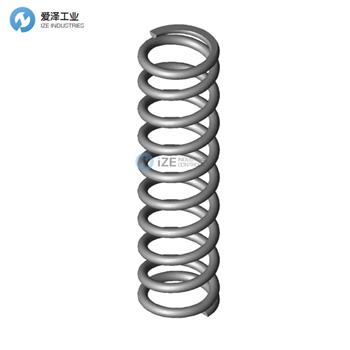

Compression springs NEW + ORIGINAL+ ONE YEAR WARRANTY
