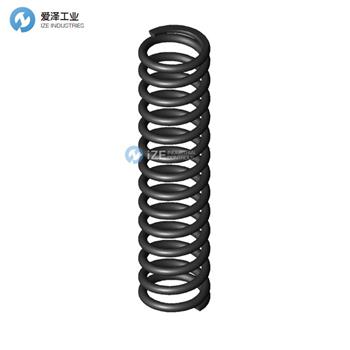

GUTEKUNST彈簧D-222D技術參數
 | |||

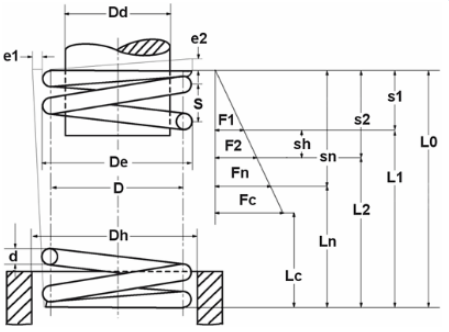

Formula symbols | Value | Unit | Description |
Material | EN 10270-1 | - | Type of material |
Spring ends | Closed and ground | - | Spring ends |
F | N | prestressed spring force | |
L1 | mm | Prestressed spring length | |
s1 | mm | Prestressed spring deflection | |
F | N | Loaded spring force | |
L2 | mm | Loaded spring length | |
s2 | mm | Loaded spring deflection | |
d | 1.6 | mm | Wire diameter |
Di | mm | Inner coil diameter | |
D | 11.1 | mm | Mean coil diameter |
De | 12.7 | mm | Outer coil diameter |
Dd | 9 | mm | maximum diameter of mandrel |
Dh | 13.3 | mm | minimum diameter of bush |
L0 | 54 | mm | unstressed spring length |
Lk | mm | buckling length | |
Fn | 106.837 | N | maximum force in static use |
Ln | 26.64 | mm | Minimum length in static use |
sn | 27.36 | mm | Maximum spring deflection in static use |
Fndyn | 100.135 | N | maximum force in dynamic use |
Lndyn | 28.36 | mm | Minimum length in dynamic use |
shdyn | 13.59 | mm | Maximum stroke in dynamic use |
s | 4.192 | mm | pitch of spring |
n | 12.5 | pc. | number of active coils |
nt | pc. | total number of coils : | |
R | 3.905 | N/mm | Spring rate |
Weight | 8.0362 | g | weight of one spring |
Fntol | 6.94 | N | (+/-) tolerance of maximum force in static use |
Fndtol | 6.84 | N | (+/-) tolerance of maximum dynamic force |
Detol | 0.3 | mm | (+/-) tolerances of outer coil diameter |
L0tol | 1.37 | mm | (+/-) tolerance of unstressed spring length |
Price group | F | - | price group |
F1tol | N | (+/-) tolerance of prestressed spring force | |
F2tol | N | (+/-) tolerance of loaded spring force | |
