HMS轉換器ABC3007-A技術參數
Specifications | |
General | |
Net Width (ERP) (mm) | 44 mm |
Net Height (ERP) (mm) | 127 mm |
Net Depth (ERP) (mm) | 114 mm |
Net Weight (ERP) (g) | 400 g |
Mounting | DIN-rail (EN 50022 standard) |
Current Consumption Type Value at Vcc Nom (mA) | 200mA @ 24V DC |
Current Consumption Max value at Vcc nom (mA) | 400mA @ 24V DC |
Input Voltage (V) | 24V DC (-20% to +20%) |
Power Connector | 2-pin, 5.08 Phoenix plug connector |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Isolation | TRUE |
Operating Temperature °C Min | -25 °C |
Operating Temperature °C Max | 65 °C |
Storage Temperature °C Min | -40 °C |
Storage Temperature °C Max | 85 °C |
Housing Materials | Aluminum, Plastic |
Packaging Material | Cardboard |

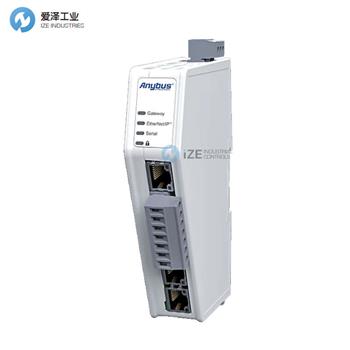

HMS轉換器ABC3007-A產品介紹
Anybus Communicator 串行主站到以太網/IP 可讓用戶將任何 RS-232/485 設備或設備連接到以太網/IP 控制系統。Anybus Communicator 可確保不同工業網絡之間可靠、安全且高速的數據傳輸。得益于 HMS 直觀的基于 Web 的用戶界面，它們也非常易于使用。
The Anybus Communicator Serial Master to EtherNet/IP enables you to connect any RS-232/485 device or equipment to EtherNet/IP control systems. Anybus Communicators ensure reliable, secure, and high-speed data transfers between different industrial networks. Thanks toHMS intuitive web-based user interface, they're also incredibly easy to use.
HMS轉換器ABC系列其他常用型號：
HMS ABC3000-A
HMS ABC3261-A
HMS ABC3300-A
HMS ABC3200-A
HMS ABC3207-A
HMS ABC3090-A
HMS ABC3013-A
HMS ABC3328-A
HMS ABC3007-A
HMS ADAPTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HMS轉換器ABC3007-A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HMS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
HMS轉換器ABC3007-A技術參數及介紹
