ANYBUS網關AB7650-F規格描述
TECHNICAL SPECIFICATIONS | |
Technical Details | |
Weight | 400 g, 0,880 lb |
Dimensions (L?W?H) | 114?44?127 mm, 4,49?1,73?5,00” |
Protection class | IP20, NEMA rating 1 |
Enclosure material | l Aluminium and plastic |
Installation position | Vertical position |
Mounting | DIN rail (35?7,5/15) |
Certifications | |
UL | File number: E203225 |
Hazardous Locations | CLASS 1, DIVISION 2, GROUPS A, B, C AND D, T4 |
ATEX | Zone 2, Cat 3 |
CE | 2014/30/EU (EMC) |
Electrical Characteristics | |
Power | 24 VDC +/- 20 % |
Current consumption | Max 400mA at 24VDC, Typical 200 mA at 24VDC |
Hardware Characteristics | |
Reverse voltage protection | Yes |
Short circuit protection | Yes |
Environmental Characteristics | |
Operating temp | -25 to 65 oC, -13 to 149 oF (for all other networks) |
Storage temp | -40 to 85 o C, -40 to 185 o F |
Relative Humidity | 5-95 % non condensing |
Installation altitude | Up to 2 000 m |
Immunity and Emission for Industrial Environment | |
Electrostatic discharge | +/- 4 kV |
Electromagnetic RF fields | 10 V/m 80 MHz - 1 GHz |
Fast Transients | +/- 1 kV |
Surge protection | +/- 1 kV |
RF conducted interference | 10 V/rms |
Emission (at 3 m） | 50 dB 30 MHz - 230 MHz |
Single Pack Accessories | |
? Configuration Cable (USB) ? Installation sheet | |

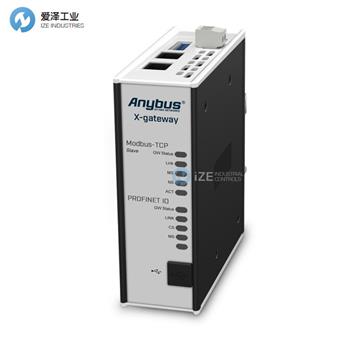

ANYBUS網關AB7650-F產品信息
The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between Modbus TCP and PROFINET networks.
FAST COPYING OF I/O DATA
The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Server on the Modbus TCP network and as a Device on the PROFINET network. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.
EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.
Features and benefits
Fast copying of cyclic I/O data between Modbus TCP and PROFINET-IO networks (10-15 ms)
Proven and tested with all PLC manufacturers
Supports up to a maximum of 512 bytes of Input and Output data in each direction
Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
Optional control status information added to I/O data for diagnostic purposes
Robust stand-alone housing for use in harsh industrial environments
Anybus X網關可以在Modbus TCP和PROFINET網絡之間無縫互連PLC控制系統及其連接的設備。
快速復制I / O數據
X網關的主要功能是在兩個網絡之間快速傳輸循環I / O數據。這使PLC免于進行其他計算。網關在Modbus TCP網絡上充當服務器，在PROFINET網絡上充當設備。兩個網絡之間的數據傳輸是完全透明的，每個方向的最大數據容量為512字節。
易于配置-無需編程！
X網關隨附的Anybus Configuration Manager軟件可快速設置兩個網絡之間的連接。無需編程技能即可設置X網關。作為出廠默認設置，X網關具有20字節I / O的預定義I / O大小。
特點和優點
在Modbus TCP和PROFINET-IO網絡之間快速復制循環I / O數據（10-15毫秒）
經所有PLC制造商驗證和測試
每個方向最多支持512字節的輸入和輸出數據
可以建立網頁來顯示和控制來自另一個連接網絡的數據的工廠車間流程
快速，動態地將現場總線數據傳輸到例如通過隨附的Anybus OPC服務器，基于Microsoft Windows的SCADA / HMI /企業級系統
可選的控制狀態信息已添加到I / O數據中以進行診斷
