GRUNER電動執行器328CS-024-15B技術參數
Technical data | |
Electrical data | |
Nominal voltage | 24 VAC/DC, 50/60 Hz |
Nominal voltage range | 19...29 VAC/DC |
Power consumption motor (motion) | 18,0 W |
Power consumption standby (end position) | 1,0 W |
Wire sizing | 22,0 VA |
Control | continuous control (0)2...10 VDC / Ri > (100 kΩ) 50 kΩ resolution 40 mV (0)4...20 mA / Rext. = 500 Ω resolution 0,08 mA |
Feedback signal | (0)2...10 VDC, max. 5 mA |
Connection motor | cable 1000 mm, 4 x 0,75 mm2 (halogen free) |
Functional data | |
Torque | 15 Nm |
Damper size | up to approx. 3 m2 |
Synchronized speed | ±5% |
Direction of rotation | selected by switch |
Manual override | gearing latch disengaged with pushbutton, self-resetting |
Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stops ; after changing the angle of rotation, a adaptation drive must be made |
Running time | 3...5 s / 90° (load-dependent) |
Sound power level | < 55 dB(A) |
Shaft coupling | clamp ? 8-15 mm / ? 8-20 mm |
Position indication | mechanical with pointer |
Service life | > 100 000 cycles (0°...95°...0°) |
Safety | |
Protection class | III (safety extra-low voltage) |
Degree of protection | IP 54 (cable downwards) |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU- 2015/863/EU-2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage | 0,8 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C... +50°C |
Storage temperature | -30°C... +80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions / Weight | |
Dimensions | 172 x 65 x 87 mm |
Weight | 700 g |

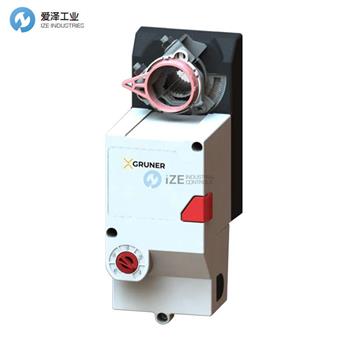

GRUNER電動執行器328CS-024-15B產品介紹
用于調節 HVAC 裝置中的風門的旋轉執行器
運行時間 3...5 秒 / 90°
扭矩 15 牛米
標稱電壓 24 VAC/DC
控制連續控制 (0)2...10 VDC
阻尼器尺寸可達約。 3 平方米
聯軸器夾 ? 8-15 mm / ? 8-20 mm
Rotary actuator for adjusting dampers in HVAC installations
Running time 3...5 s / 90°
Torque 15 Nm
Nominal voltage 24 VAC/DC
Control continuous control (0)2...10 VDC
Damper size up to approx. 3 m2
Shaft coupling clamp ? 8-15 mm / ? 8-20 mm

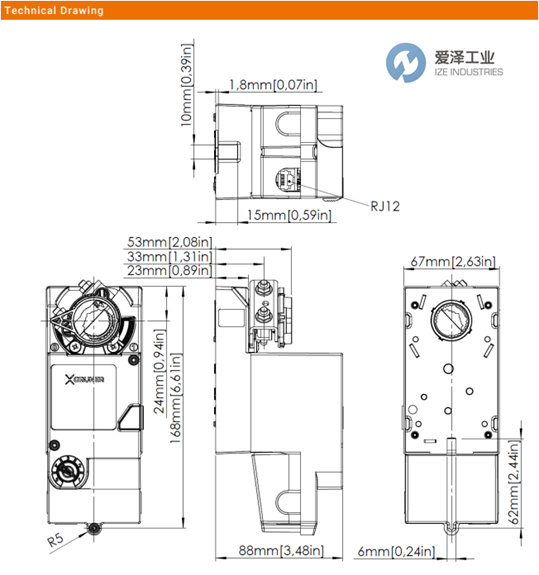

GRUNER電動執行器328CS-024-15B技術尺寸
GRUNER電動執行器328系列其他常用型號：
GRUNER 328CS-024-02A
GRUNER 328CS-024-05B
GRUNER 328CS-024-10B
GRUNER 328CS-024-15B
GRUNER Rotary actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
