GRUNER執行器328CS-024-10B-V/ST06技術參數
Technical data | |
Electrical data | |
Nominal voltage | 24 VAC/DC, 50/60 Hz |
Nominal voltage range | 19...29 VAC/DC |
Power consumption motor (motion) | 18,0 W |
Power consumption standby (end position) | 1,0 W |
Wire sizing | 22,0 VA |
Control | 6 ± 4 VDC (GUAC) |
Connection GUAC | cable 1000 mm with Lumberg connector |
Functional data | |
Torque | 10 Nm |
Damper size | up to approx. 2 m2 |
Direction of rotation | adjustable via GUAC |
Manual override | Gearing latch disengaged with pushbutton, self-resetting |
Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stops ; after changing the angle of rotation, a adaptation drive must be made |
Running time | 3 s / 90° |
Sound power level | < 55 dB(A) |
Shaft coupling | clamp ? 8-15 mm / ? 8-20 mm |
Position indication | mechanical with pointer |
Service life | > 100 000 cycles (0°...95°...0°) |
Safety | |
Protection class | III (safety extra-low voltage) |
Degree of protection | IP 54 (cable downwards) |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage | 0,8 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions / Weight | |
Dimensions | 172 x 65 x 87 mm |
Weight | 800 g |
GRUNER執行器328CS-024-10B-V/ST06產品介紹
用于調節風門的旋轉執行器與 GUAC 控制器相結合，用于 HVAC 裝置中的壓力和體積流量控制
運行時間 3 秒/90°
扭矩10牛米
標稱電壓 24 VAC/DC
控制 6 ± 4 VDC (GUAC)
阻尼器尺寸約 2 m2
聯軸器夾 ? 8-15 mm / ? 8-20 mm

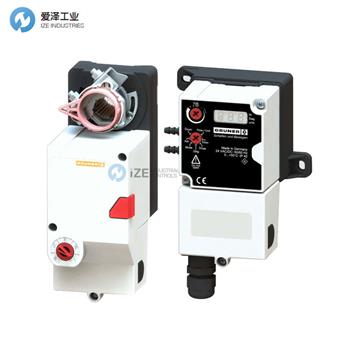

Rotary actuator for adjusting dampers in combination with a GUAC controller for pressure and volumetric flow control in HVAC installations
Running time 3 s / 90°
Torque 10 Nm
Nominal voltage 24 VAC/DC
Control 6 ± 4 VDC (GUAC)
Damper size up to approx. 2 m2
Shaft coupling clamp ? 8-15 mm / ? 8-20 mm
GRUNER執行器328CS-024系列其他常用型號：
GRUNER 328CS-024-02A
GRUNER 328CS-024-05B
GRUNER 328CS-024-05B-V/ST06
GRUNER 328CS-024-10B
GRUNER 328CS-024-10B-V/ST06
GRUNER 328CS-024-15B
GRUNER 328CS-024-15B-V/ST06
GRUNER ACTUATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRUNER執行器328CS-024-10B-V/ST06的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRUNER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
